Eco Star PV

Eco Star PV Pool Heat Pump
ce certification
bsci
inver-core-s
r32

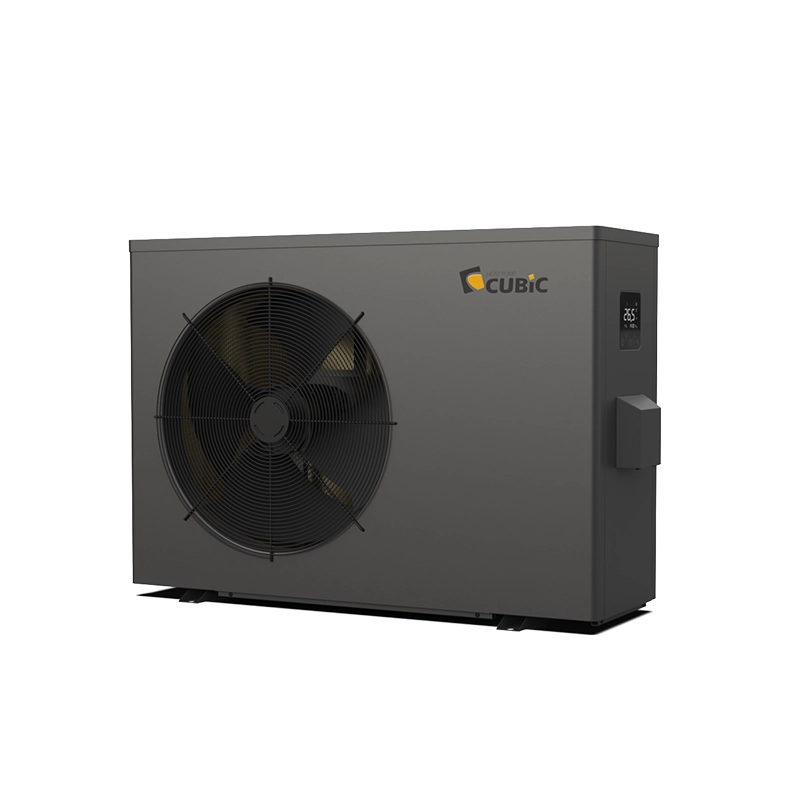

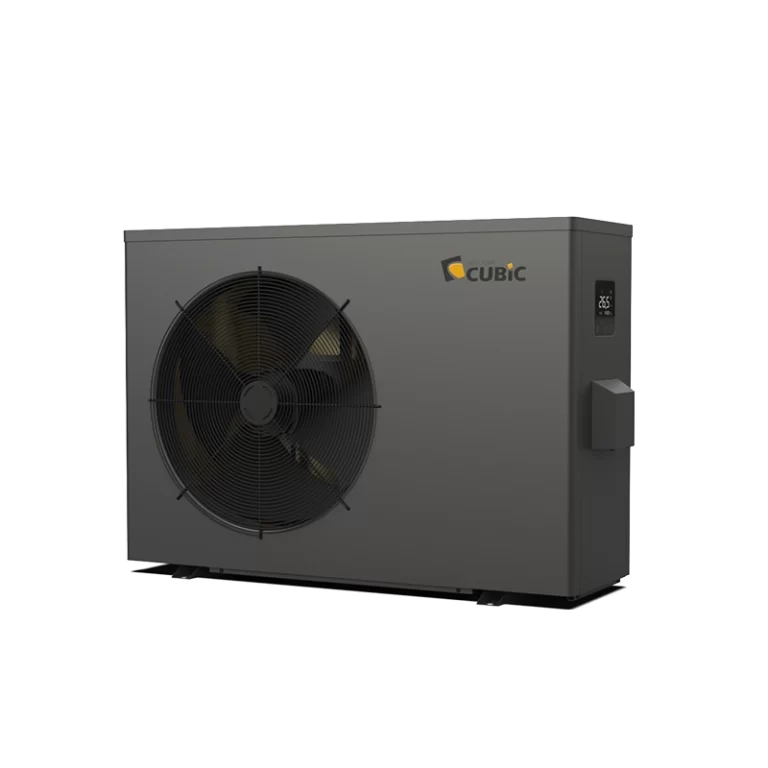

Eco Star PV

Full Inverter Pool Heat Pump

7kW-17.5kW

The Eco Star PV Full Inverter Heat Pump is an upgraded version of the Eco Star series. It integrates a solar PV energy system for the first time, achieving an intelligent “dual-energy drive” operation mode. Equipped with an intelligent energy management module, it can automatically identify and prioritize the use of clean energy from the photovoltaic system to power the heat pump. When PV power generation is insufficient (such as during cloudy weather or at night), the system automatically and seamlessly switches to municipal power supply. During PV power supply periods, it achieves 100% zero carbon emissions, significantly reducing CO2 emissions throughout its entire lifecycle.
Get A Qoute

Dual-Energy Drive

More Energy Savings / More Eco Friendly

PV Input Voltage Range:
DC 80V–400V
Maximum PV Input Power:
3500W
Smart Switching Response Time:
<0.5s (seamless switching, imperceptible to users)
Anti-Reverse Current Protection:
Compliant with IEC 62109 standard

inver-CORE Full DC Inverter Technology

“Inver-CORE” is powered by advanced unique full DCinverter technology which allows you to vary the speed of the compressor and speed fan motor. It makes swimming pool heat pumps achieve an extremely high COP.

The “inver-CORE” full inverter technology can control the compressor and fan motorspeed to reach optimized performance. Only full inverter technology can drive the DC inverter compressor Hz by Hz and DC brushless fan motor round by round, which leads to the stepless running of the whole system, and brings the most comfortable, healthy & silent environment. Learn More>>

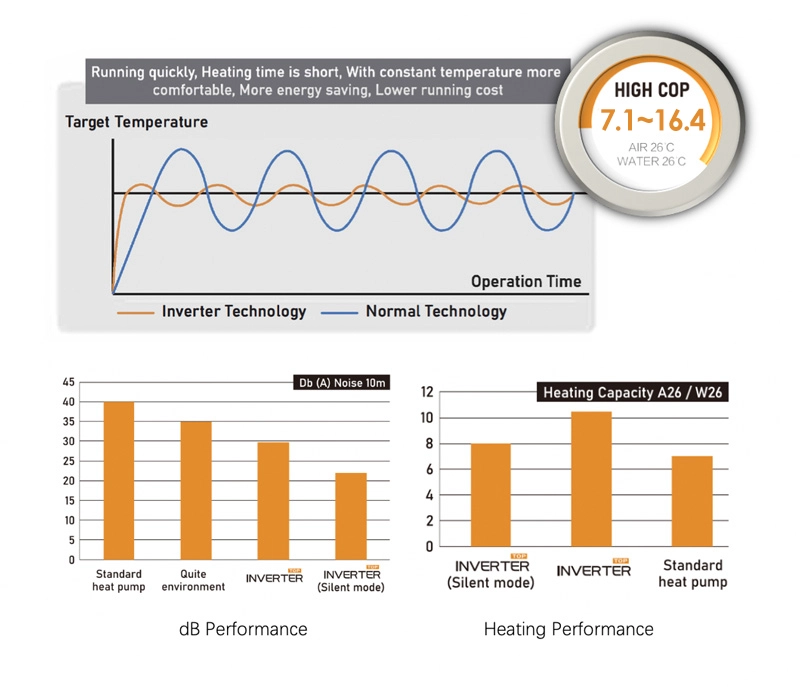

Eco Star PV Inverter Pool Heat Pump - Performance

Three Modes

Power Mode – the heating time in much shorter.
Smart Mode – our heat pump has the best balance between efficiency and performance.
Silent Mode – it brings the end user ultra-quiet swimming experience.

Wi-Fi Control

Offers convenient remote management, allowing you to control the system from your smartphone or onther devices.

Optional R290

Minimal GWP, Zero ODP – A Greener Alternative to R32 and R410A​

Twisted Ti-heat Exchanger​

CUBIC Heat Exchanger tube is made from pure titanium and is virtually impervious to water-chemistry damage. It also features a reasonable surface design that maximizes the surface contact of pool water, providing superior performance.

Optional Accessories

optional-accessories

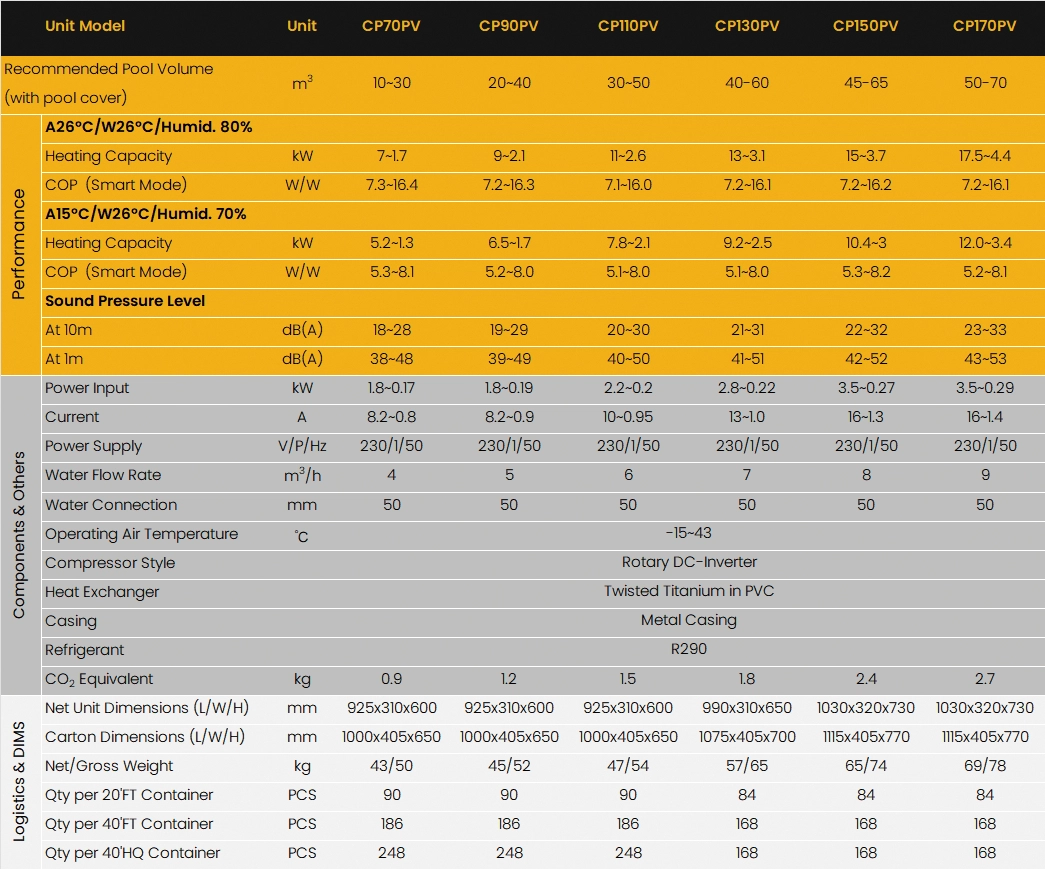

Parameters

Eco Star PV Parameter
